Delta AS332P-A: PLC for next-generation smart machines

Production machinery is becoming increasingly fast, interconnected, and complex to control. Delta Electronics developed the AS332P-A modular PLC specifically for such applications. This device combines high computing power, modern communication interfaces, and multi-axis motion control support into a compact solution suitable for a wide range of industrial applications.

One PLC for the entire machine

Are you a designer and looking for a control system for a new machine that can handle not only classic logic but also communication with HMIs, servo drives, frequency converters or remote I/O modules?

Delta AS332P-A is suitable for such applications. The PLC offers an integrated Ethernet interface, USB, serial communication and the possibility of further expansion. Thanks to the modular architecture, you can adapt the system to the specific requirements of the machine without unnecessary compromises. The connection of additional modules and subsequent service are also facilitated by removable terminal blocks and mounting on a DIN rail.

Performance for demanding applications

Modern machinery requires a control system with rapid response times. The Delta AS series utilizes a powerful 32-bit processor capable of handling extensive control programs and demanding motion control applications.

The AS332P-A supports multi-axis control, industrial network communication, and expansion to hundreds of I/O points. This makes it a suitable solution not only for standalone machines but also for large-scale production lines.

The Delta AS series PLC is designed for a wide range of industrial applications. It is suitable for use in areas such as:

• packaging and labeling machines,
• food production lines,
• pharmaceutical technologies,
• textile machinery,
• assembly and handling lines,
• conveyor systems,
• machines utilizing servo drives and precision positioning.

The Delta AS series is particularly suitable for applications requiring a combination of high-speed control, multi-axis motion, and reliable communication between individual machine components.

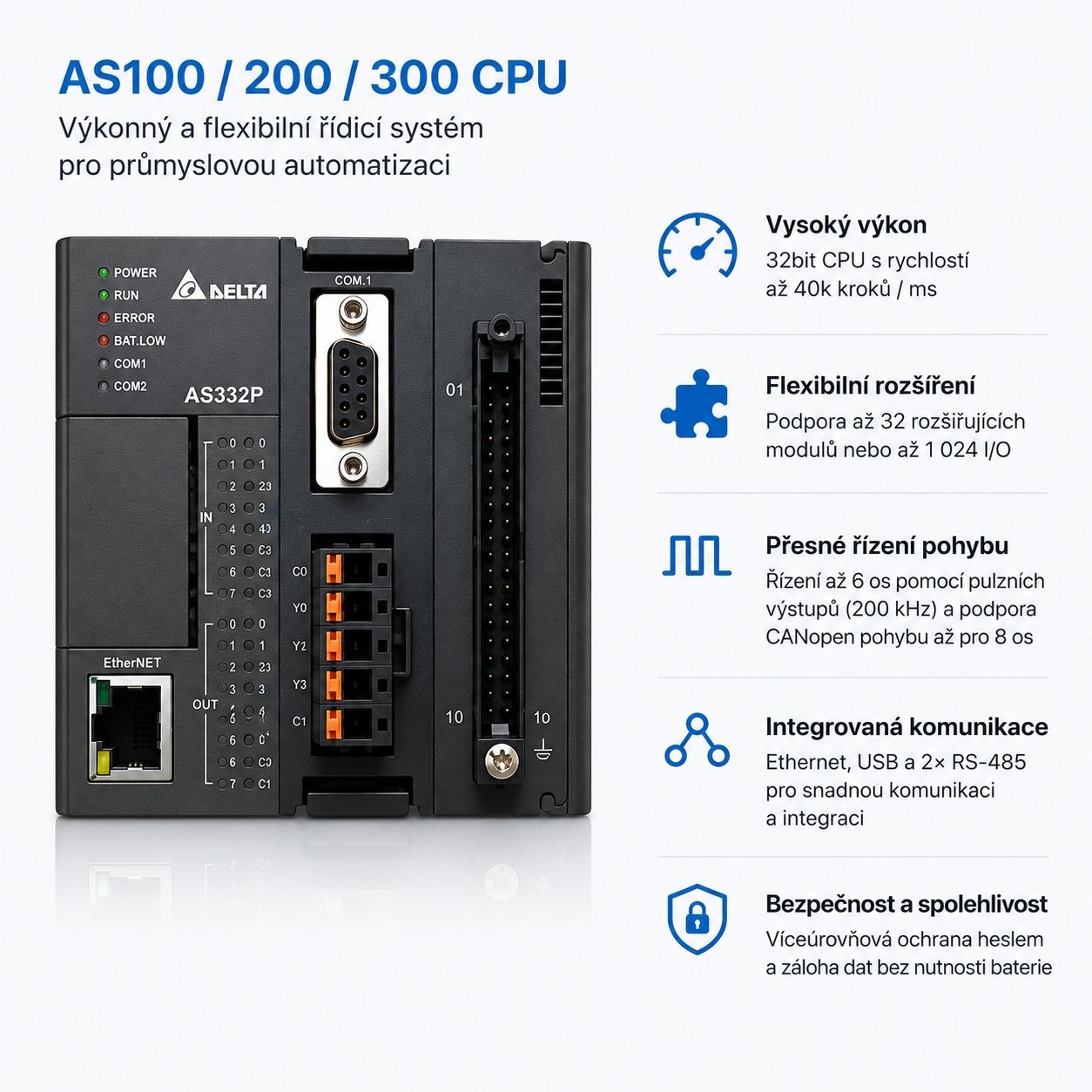

Key features

• 16 digital inputs + 16 PNP transistor outputs
• 24 V DC power supply
• Ethernet, USB, and RS-485
• 128k-step program capacity
• expandable up to 1024 I/O
• EtherNet/IP and CANopen support

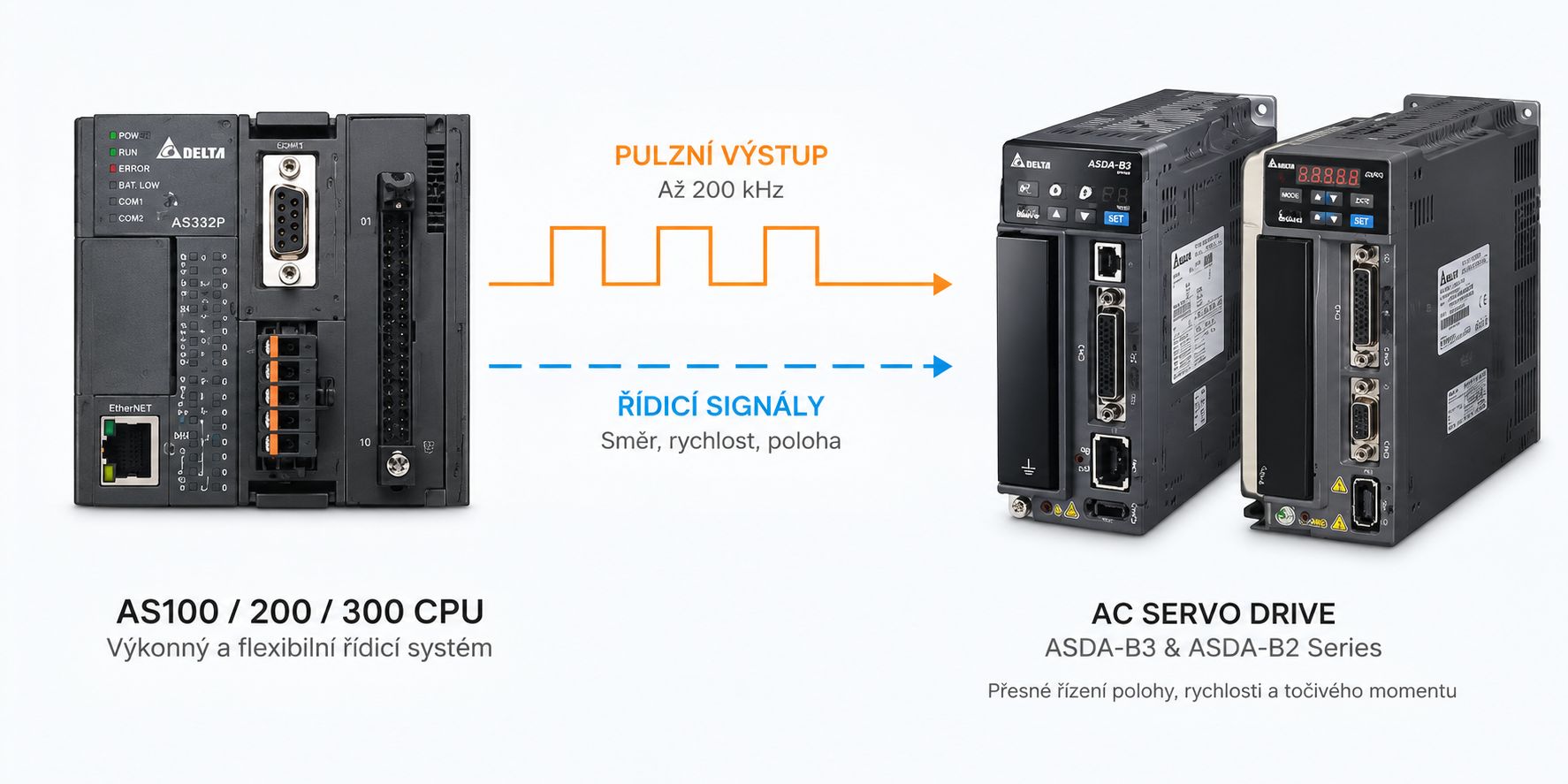

• control of up to 6 axes (200 kHz)
• DIN rail mounting
• IEC 61131-3 programming

Why choose the DELTA AS332P-A?

The DELTA AS332P-A offers high performance, flexibility, and extensive expansion capabilities for modern automation. It features 32 integrated I/O points, control of up to 6 axes via 200 kHz pulse outputs, 128k steps of program memory, and support for up to 32 expansion modules. Integrated Ethernet, USB, and dual RS-485 interfaces facilitate communication and integration into existing systems.

The DELTA AS332P-A is an ideal choice for production machinery and automated lines requiring a combination of high-speed control, precise multi-axis positioning, and reliable communication within a single compact PLC.
