Delta DOP-110CS: HMI for controlling industrial technologies

The Delta DOP-110CS is a 10.1″ industrial HMI panel designed for operator visualization and the control of machinery and production systems. It belongs to the Standard HMI category—designed for general industrial applications—and offers multiple serial communication interfaces for easy connectivity with PLCs, drives, and other devices. It is part of the DOP-100 series.

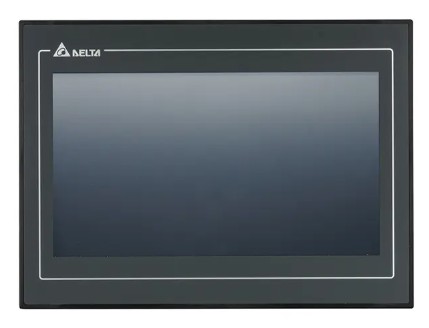

The panel features a 10.1″ TFT LCD display with a resolution of 1024 × 600, 16-bit color depth, and LED backlighting. It is powered by an 800 MHz ARM Cortex-A8 processor, complemented by 256 MB of Flash ROM and 256 MB of RAM. The touchscreen utilizes 4-wire resistive technology and is rated for over 10 million presses.

Key features of the Delta DOP-110CS

• 10.1″ TFT LCD, 1024 × 600 resolution
• 800 MHz ARM Cortex-A8 processor
• 256 MB Flash ROM + 256 MB RAM
• resistive touch panel with a lifespan of over 10 million presses
• 3 serial communication ports
• USB Host 2.0 and USB Slave 2.0
• 24 V DC power supply
• IP65 / NEMA 4 / UL Type 4X front panel protection (indoor use)
• operating temperature 0 to 50 °C
• CE / UL certification

Communication and connectivity

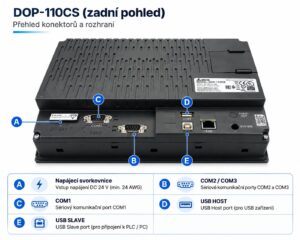

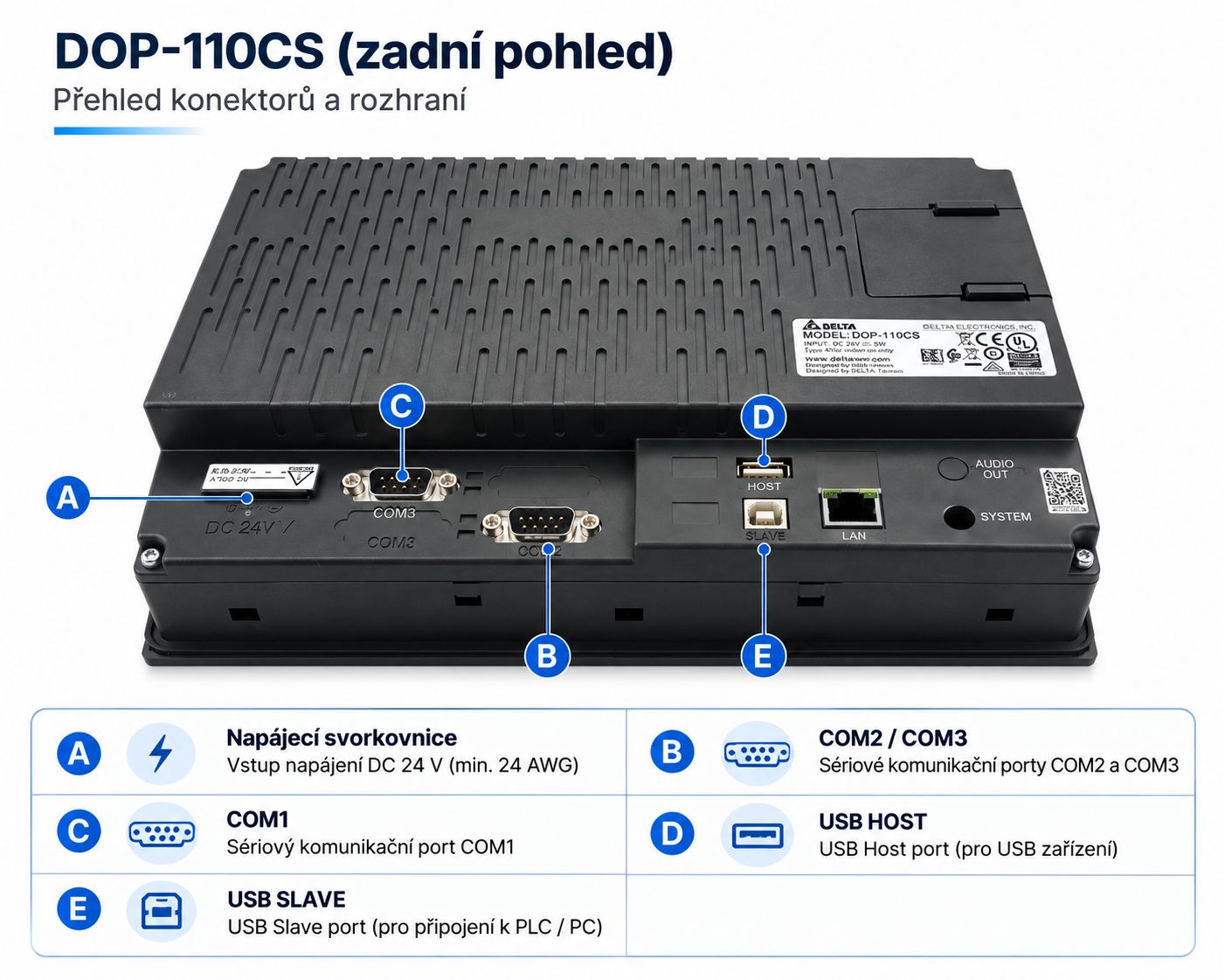

The DOP-110CS offers three serial interfaces: COM1 supports RS-232, COM2 offers RS-232/RS-485, and COM3 supports RS-422/RS-485. It also features one USB Host port and one USB Slave port, enabling connection to devices such as PLCs, drives, controllers, or other automation system components.

Another key feature of the DOP-110CS model is built-in power isolation, which helps protect the HMI against unwanted voltage spikes. Additionally, the DOP-100 series utilizes a protective PCB coating to enhance resistance to moisture and dust.

DIAScreen software

The entire DOP-100 series uses the DIAScreen development environment, which offers graphical tools for creating user interfaces, project management, screen previews, diagnostics and working with macros. The platform also includes support for the Lua language, which allows you to extend HMI functions with your own logic.

The DOP-100 series also supports functions for alarms, historical data, recipes and user authorization management. For example, alarms can contain current register values ​​for easier problem analysis. The system allows you to set up to 8 levels of authorization.

Areas of application

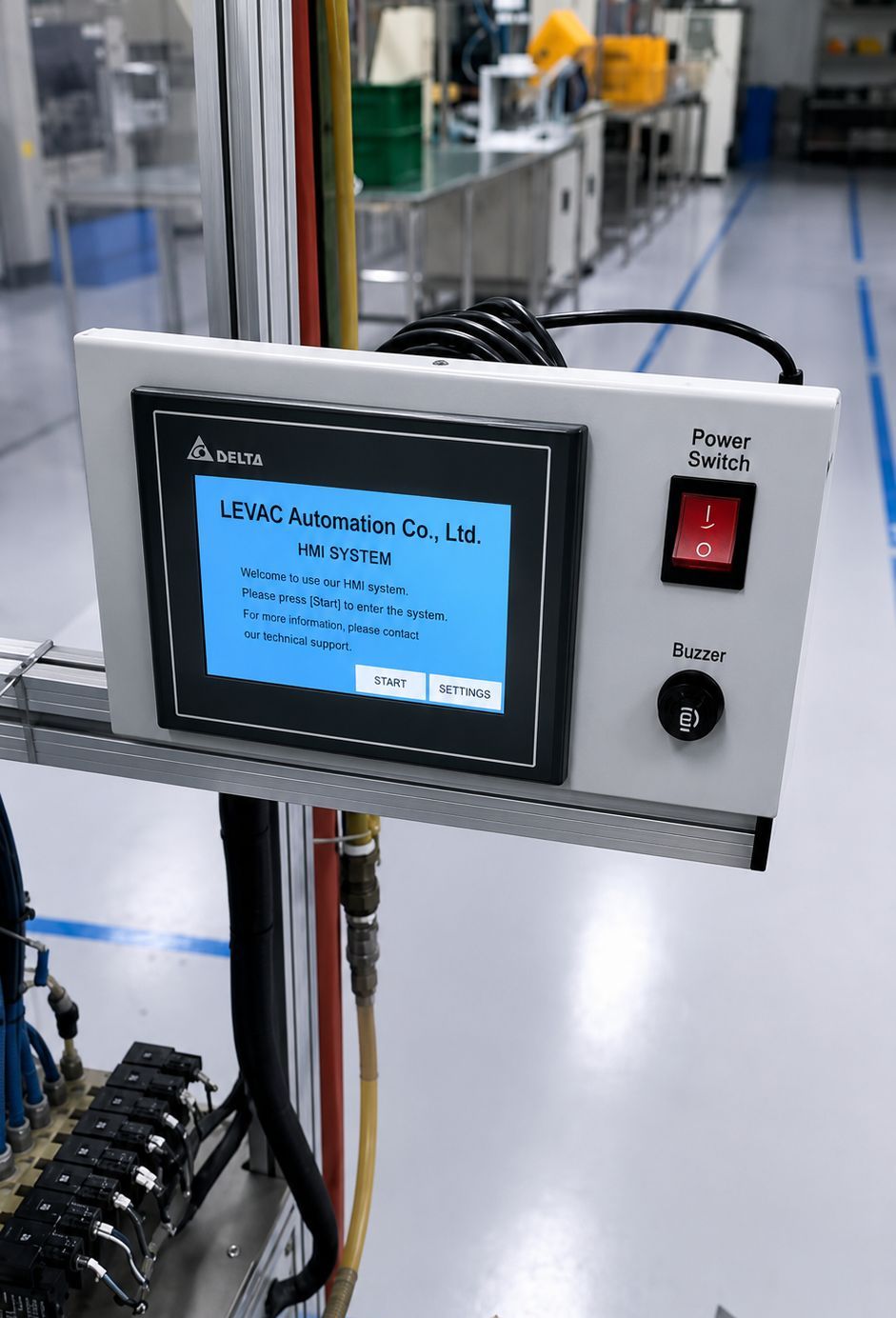

The Delta DOP-110CS is particularly suitable for applications requiring a local touch interface between the operator and the control system. Typical applications include:

• production and assembly lines,
• packaging and labeling machines,
• conveyor systems,
• food processing technology,
• textile machinery,
• pump, motor, and drive control,
• general machinery and process applications.

Why choose the Delta DOP-110CS?

The Delta DOP-110CS is an ideal choice for applications requiring a large, clear 10.1″ touchscreen, reliable serial communication with multiple devices, and a robust design suitable for industrial environments. With three COM ports, a durable touchscreen, IP65 protection, and the DIAScreen development environment, the Delta DOP-110CS serves as a practical HMI solution for both standalone machines and larger-scale automation systems.
